TSR Series

The TSR Series Robotic Vial Loading System (Pat. No. 12,667,967 B2) is engineered for high-precision, high-efficiency loading in soldier pack configurations, delivering consistent performance at speeds up to 700 units per minute. Designed for versatility, it can accommodate multiple container sizes, tray types, and pack patterns, making it a strong fit for complex or multi-format operations.

At the heart of the TSR is a robotic pick-and-place system equipped with camera inspection, ensuring accurate orientation, placement, and quality verification of every container. Configurable single or dual infeed lanes and tray stations allow the system to be tailored to specific line layouts and throughput goals.

To maximize uptime, the TSR incorporates pre-counted tray staging, enabling smooth, continuous operation at peak speed. With its advanced automation, inspection capabilities, and flexible configuration, the TSR offers a powerful solution for precise, high-volume trayloading.

System Core Features

Output – 700 upm max
Pack Configuration – Soldier
Capable of handling multiple container sizes, tray types, and pack patterns
Robotic pick-and-place with camera inspection
Single/dual lane infeed and/or tray stations
Pre-counted tray staging for maximum throughput

TSR Series

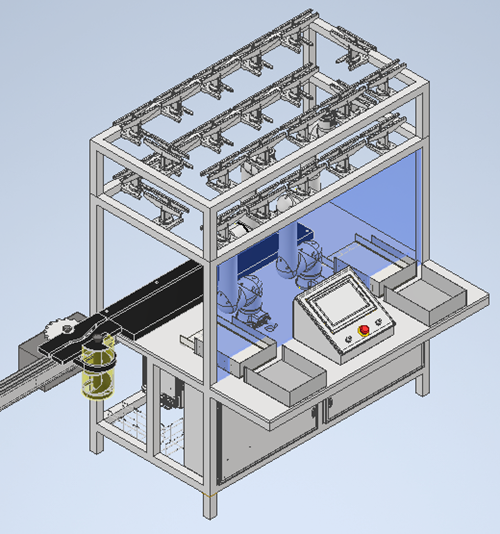

The above Trayloader features independent dual tray stations with unit infeed through a passive fallen unit ejection area and automatically adjustable unit staging area. The 2 collaborative robots utilize a gripper-style EOAT that can be automatically changed over through recipe selection and stored internal to the equipment. There are locally mounted control cabinets with an operator control station ergonomically mounted on the worktable.
